Intumescent Fireproof
Jacket
Flexible Fireproof
Jacket
MBMFlexi® Flexible Fireproof Jacket
MBMFlexi® is a fireproof jacket that acts as a shell to protect devices and controlling equipment from accidental fire.

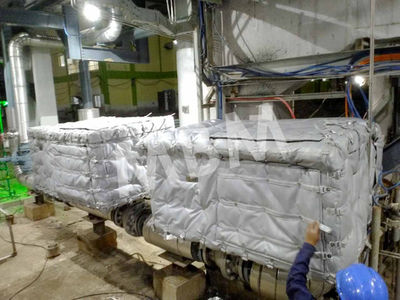

MBMFlexi® is directly installed on the equipment body and accessories with Stainless steel modular frame constructed around it. This assembly creates enclosed space for equipment which helps to minimize the danger and damage caused by accidental fire spread in refinery plants, oil platforms, petrochemical plants, thermal power plants, electrical, shipbuilding, and defense plants.
MBMFlexi® Fireproof system consists of multi-layers of ceramic fiber blanket separated by alumina foil & ceramic wool and is fastened through belts and buckles made up of stainless steel.
The innovative design of MBMFlexi® assembly and disassembly of the jacket is simple and hassle-free which can be carried out by both trained and untrained professionals for maintenance work without any additional tools and equipment.
MBM Flexible Fireproof Jackets are designed and developed to withstand high temperatures which range from 270° C to 1400 ° depending upon the requirement and fire scenario for equipment.
MBM Flexible Fireproof Jackets is designed and manufactured in such a way that it enables easy handling and transport of jacket to site location.
MBMFlexi® is tested and is certified which guarantees complete protection of equipment and control system from passive fire and keeps them safe and operational for a period of time.
MBMFlexi® for Cable trays
Insulation for pipeline & cable trays same as per MBMFlexi® it will also contain the multilayers of the Aluminized cloth, Ceramic Blanket. It will be directly mounted with a ceramic fiber belt & Stainless-Steel buckles. The jacket thickness will depend upon the temperature criteria.
Advantages of MBMFlexi®
-
Light in weight and easy to handle
-
No skilled professional is required for the assembly of the jacket.
-
Hassle-free installation and replacement without disturbing the operations of plants
-
The material used is harmless and free of harmful minerals like asbestos offshoots etc.
-
MBM Flexi can withstand all weather conditions.
-
The material used is UV resistant and chemical resistant.
Areas of Application for MBMFlexi®
-
Pneumatic Actuator
-
Electric Actuator
-
Valve body
-
Pipeline
-
Flanges
-
Air tank
-
Cable tray
-
Control Cabinet
Product certification
-
Hydrocarbon Pool Fire: UL 1709 / ASTM E1529 / API RP 2218.
-
Jet Fire: ISO22899 Part 1 & 2 / OTI HSE 95634.
PFP Duration
-
30 minutes to 120 minutes.
Lab Testing Photos
-
UL 1709 Hydrocarbon Pool Fire
Before Test
After Test
Cable Tray
Before Test
After Test
-
ISO 22899 Jet Fire
Before Test
After Test
Cable Tray
Before Test
Mid Test
After Test
OUR CERTIFICATION BODY
Contact MBM Automation and Robotics for your customized Passive Fireproof Jacket which meets your Passive Fire Protection Requirements.
MBM Automation is one of the leading manufacturers and exporter of Passive Fireproof Jacket and other Passive Fire Protection Products located in Pune, India. For customized Passive Fireproof Jacket drop an email on sales@asia-mbm.com
